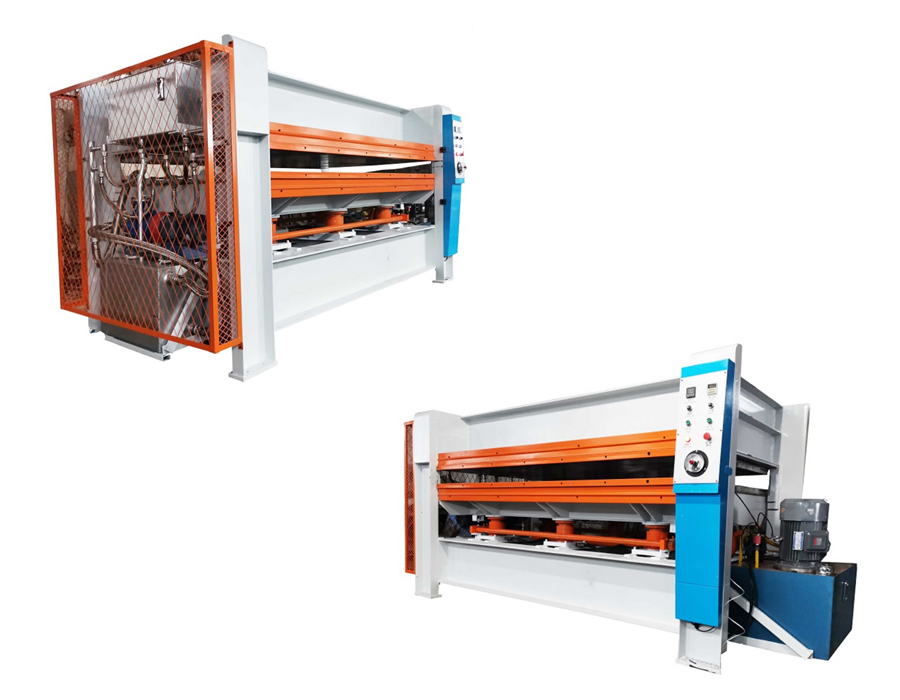

Veneer presses are used for the laminating various materials such as veneer, laminate, aluminium or composites to sheet materials or doors. We have a large range of sizes for different applications. Press a piece of painter's tape on one side of the joint. Then pull firmly on the tape while holding the two pieces of veneer together, and press the other side of the tape on to the other side of the joint.
| Model | Mh3848X120T(1layer) |
MH3848X120T(2 Layer) |
MH3848X120T(3 Layers) |
| Press Plate Size | 1300*2500*42mm |
1300*2500*42mm |
1300*2500*42mm |
| Max. Pressure | 120T |
120T |
120T |
| Pressure of Hydraulic | 254kg/cm |
254kg/cm |
254kg/cm |
| Max.Opening | 380mm |
170mm |
100mm |
| Hydraulic Cylinder | *100*8pcs |
*100*8pcs |
*100*8pcs |
| Hydraulic Motor | 5.5kw |
5.5kw |
5.5kw |
| Hot Oil Pump Power | 1.5kw |
2.2kw |
2.2kw |
| Heating Pipe | 27kw |
45kw |
54kw |
| Overall Dimension | 3700*1660*2100mm |
3700*1660*2100mm |
3700*1600*2100mm |
| Net Weight | 6485kg |
7400kg |
8500kg |
We offer the best and most reasonably priced equipment, chosen from internationally renowned brands renowned for their quality and technology. Some of our featured brands are UniSunx, Gongyou-Paoloni, VarioPress, KDT, Sicar, HollyHy, Topland, and Lazzari, etc.
