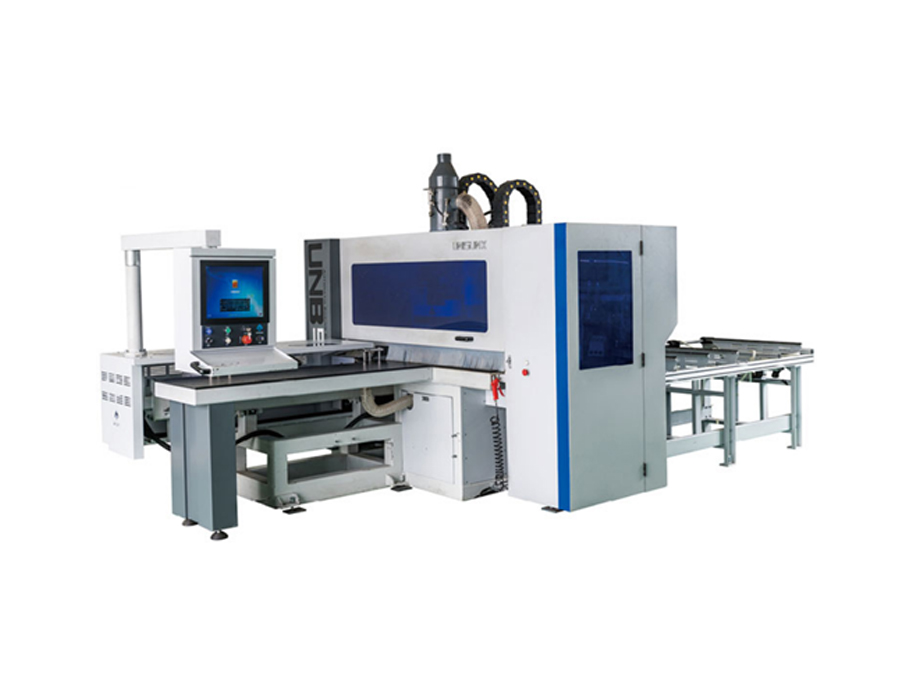

NC Boring Machine


UNB512 NC Boring Center (Five Sided Boring Machine) Application & Salient Features :

  • Pc control +CAD/CAM.
  • Could be compatible with format of XML, MPR etc.
  • Seamlessly connected with design & disassemble software
  • Five sided boring machine:
  • D:12V 2*3 boring head
  • E: 12V 2*4 boring head
  • S:12V 2*4 Double boring head
  • Six-sided boring machine:
  • Upper boring head:12V 2*4 boring head, down boring head:9V
  • Used for mass production of fixed furnitures, wardrobes, kitchen cupboards etc.
The Workpiece Length
200-2500mm
Work Piece Width
50-1200mm
The Thickness of the Workpiece
10-60mm
Max.Moving Speed of the Gripper
80m/min
Max. Moving Speed of the Y-Axis
75m/min
Max. Moving Speed of the Z-axis
30m/min
Cutting Tools Number
*12+**2+*3
Drill Clamp Specifications
*10
Overall Dimensions
5020*2530*2080mm
The Total Powers
11.93kw
Work Pressure
0.6mpa
